304 Stainless Steel 500kg/H Fully Automatic Potato Chips Processing Line Potato Chips Making Machine

Potato Chips Processing Line
Products Inquiry
Click Refresh Verification Code

Products Advantage-Fully Automatic 500kg/H Potato Chips Production Line Potato Chips Making Machine

1. Process capacity (finished capacity 100kg/h to 2000kg/h) and work flow can be customized.
Automatic Frozen French Fries Making Machine Potato Chips Line 2000kg/H.
2. All equipment are made of SUS304,electrical apparatus element are Schneider brand or CHINT brand.
3. Heating method: Electric heating, Gas heating or Diesel heating (equipped with RIELLO or BALTUR burner), etc.
4. The size of French fries and the thickness of potato chips are adjustable. french fry production line
5. For French fries line, we have special equipment to remove the unqualified fries. french fry production line

304 Stainless Steel 500kg/H Fully Automatic Potato Chips Processing Line Potato Chips Making Machine

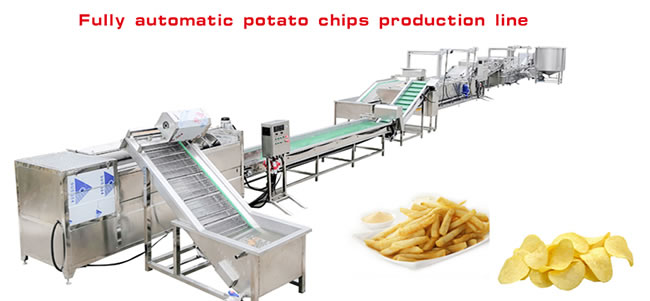

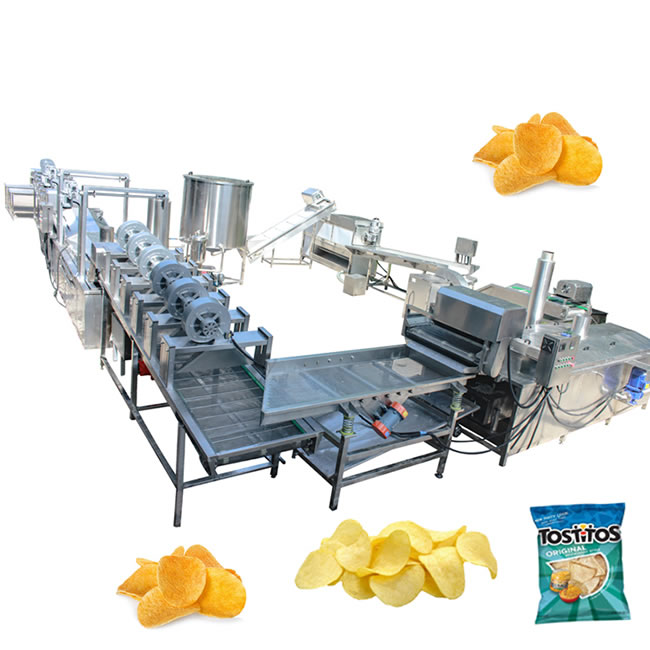

Fully Automatic 500kg/H Potato Chips Production Line Potato Chips Making Machine -Production process

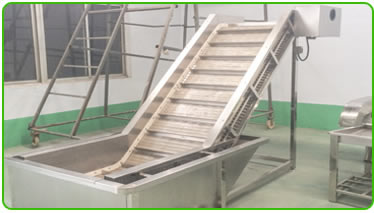

Fresh Potato Elevator
Potato Washing and Peeling Machine

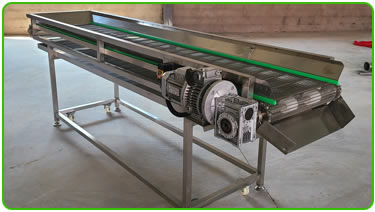

Unqualified Potato Picking Line
French Fries Cutting Potato Chips Slicing
Fries Pre-washing Elevator with Water Tank
Unqualified Fries Picking Line
Potato Chips and French Fries Washing Machine

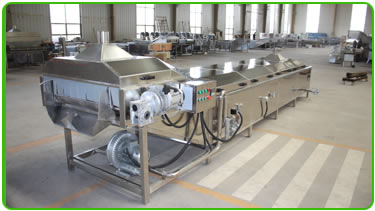

Blanching Machine

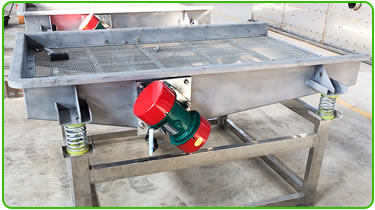

Vibration De-water Machine
Blowing Line to remove the surface water

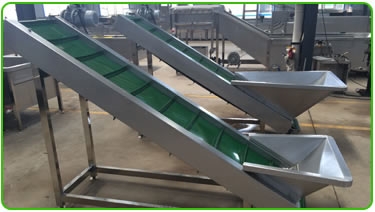

Elevator conveyor, transports fries into the fryer
Continuous Frying Machine
Vibrating De-oil Machine
Air-Cooling Machine to remove extra surface oil

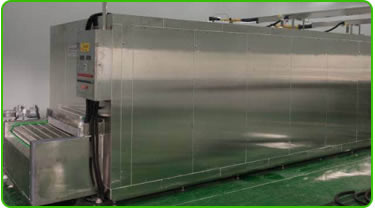

Quick-freezing Equipment
Automatic Weighing and Packaging Machine

Fully Automatic 500kg/H Potato Chips Production Line Potato Chips Making Machine

No.NameQuantityDimensionPowerNet weight

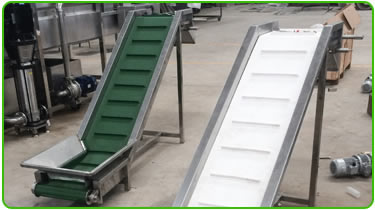

1Conveyor hoist machine1 set2000*800*2000mm0.75kw200kg

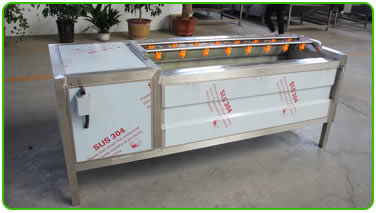

2Cleaning and peeling machine1 set1800*900*1500mm

4.75kw

620kg

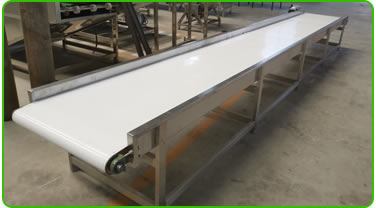

3Picking line1 set3000*900*900mm

0.75kw

300kg

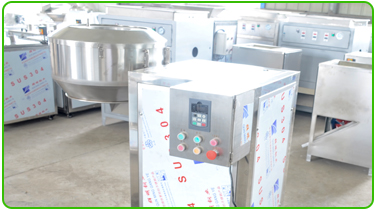

4French fries potato chip machine1 set950*800*950mm

1.5kw

110kg

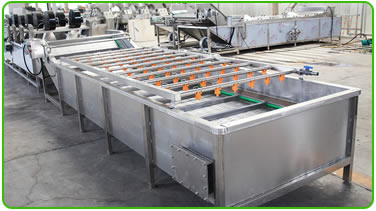

5Washing machine1 set3000*1600*900mm

5kw

800kg
6Blanching machine1 set3000*1600*950mm

2.2kw

1000kg
7Vibration water remover machine1 set1500*1000*1300mm

15kw

700kg
8Picking line1 set3000*800*1000mm

0.75kw

300kg

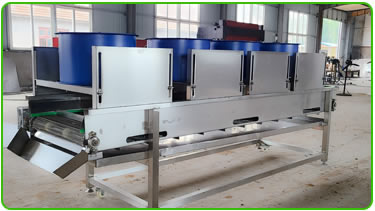

9Air cooled dewatering machine1 set4000*1200*1400mm

15kw

700kg

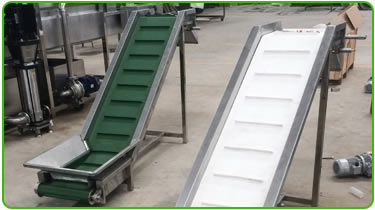

10Conveyor hoist machine1 set2000*800*1300mm0.75kw200kg

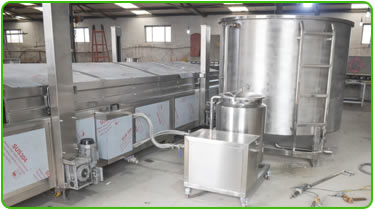

11Electric heating frying line1 set3500*1200*2600mm

0.5kw

2200kg
12Vibration oil remover machine1 set1500*1000*1300mm

1.5kw

2200kg

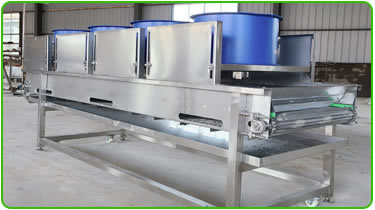

13Air drying machine1 set4000*1200*1600mm

15kw

700kg
14Conveyor hoist machine1 set2000*800*2200mm0.75kw200kg

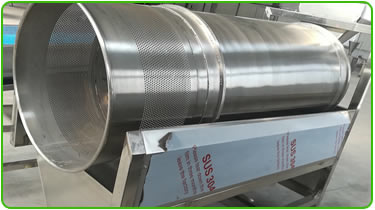

15Seasoning machine1 set2000*700*1600mm

1.5kw

400kg
16Packing Machie1 set2400*700*3200mm

1.0kw

400kg

Our factory supports the customization of production planning scheme.

We can design the application scheme diagram of product workshop for free.
