semi-automatic potato chips production line-french fries frozen,potato chips making machine,french fries seasoning machine packing machine

semi-automatic potato chips production line-french fries frozen,potato chips making machine

Products Inquiry

Product Name * :

Email * :

Name :

Tel :

Message :

Validatecode * :

semi-automatic potato chips production line-french fries frozen,potato chips making machine,french fries seasoning machine packing machine

Power(W):55kw

Dimension(L*W*H):Customized

Weight:2000kg

Warranty:1 YEAR

After-sales Service Provided:Field installation, commissioning and training

Application fields:Vegetable processing plant, Fruit processing plant, Snack food factory, Frozen food Factory, Potato farm

Machinery Function:to make potatao chips | french fries

Raw material:Vegetables, Potato

Output product name:french fries

Key Selling Points:High productivity

Machinery:frozen french fries production line

Machine Material:Food grade 304 stianless steel

Heating source for Blanching and Frying:Gas | Electricity | Diesel

Chips thickness:1-5mm adjustable

French fries size:Custom made

Potato chips | French fries type:Frying or Baking

Production process:Custom made

Plant scale:Automatic or semi automatic

Finished capacity:30kg to 2000kg per hour

Final product:Potato chips | French fries

Fully Automatic 500kg/H Potato Chips Production Line Potato Chips Making Machine

No.	Name	Quantity	Dimension	Power	Net weight
1	Conveyor hoist machine	1 set	20008002000mm	0.75kw	200kg
2	Cleaning and peeling machine	1 set	18009001500mm	4.75kw	620kg
3	Picking line	1 set	3000900900mm	0.75kw	300kg
4	French fries potato chip machine	1 set	950800950mm	1.5kw	110kg
5	Washing machine	1 set	30001600900mm	5kw	800kg
6	Blanching machine	1 set	30001600950mm	2.2kw	1000kg
7	Vibration water remover machine	1 set	150010001300mm	15kw	700kg
8	Picking line	1 set	30008001000mm	0.75kw	300kg
9	Air cooled dewatering machine	1 set	400012001400mm	15kw	700kg
10	Conveyor hoist machine	1 set	20008001300mm	0.75kw	200kg
11	Electric heating frying line	1 set	350012002600mm	0.5kw	2200kg
12	Vibration oil remover machine	1 set	150010001300mm	1.5kw	2200kg
13	Air drying machine	1 set	400012001600mm	15kw	700kg
14	Conveyor hoist machine	1 set	20008002200mm	0.75kw	200kg
15	Seasoning machine	1 set	20007001600mm	1.5kw	400kg
16	Packing Machie	1 set	24007003200mm	1.0kw	400kg
	Our factory supports the customization of production planning scheme. We can design the application scheme diagram of product workshop for free.
	Email:Sale@frenchfriesline.com	Wechat:+86 15249634567		WhatsApp:+86 15249634567

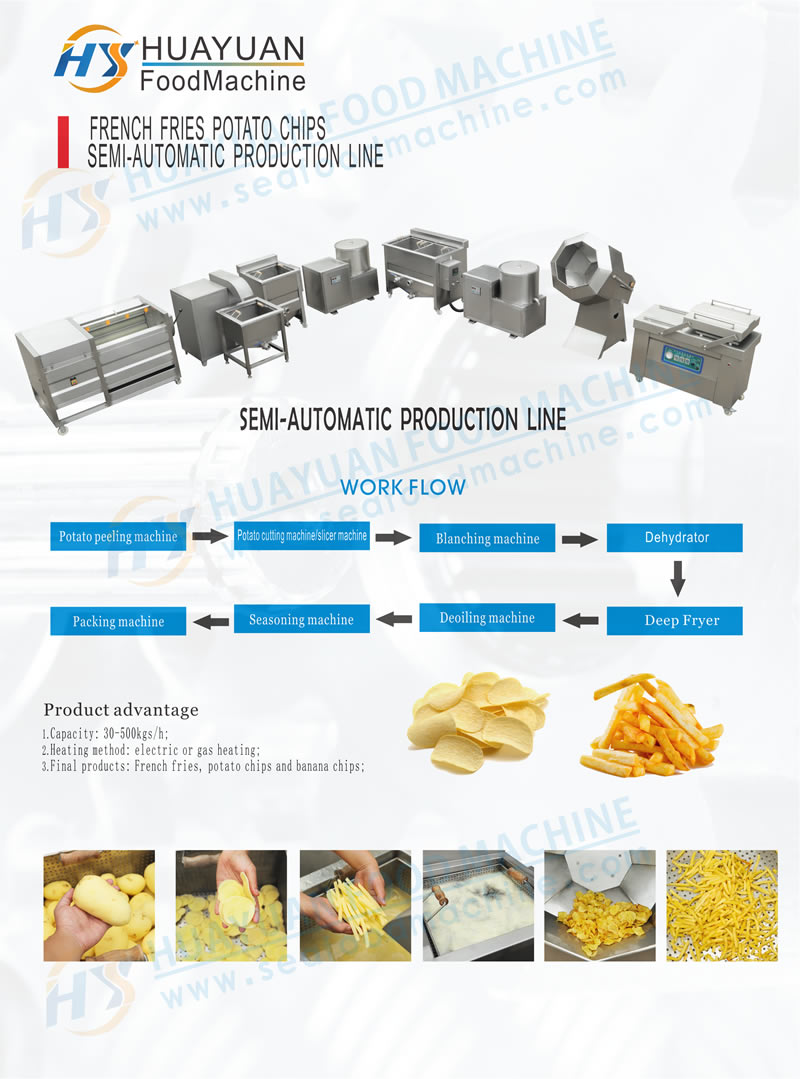

semi-automatic french fries <a href= banana chips production line" alt="semi-automatic french fries banana chips production line" width="800" height="1094" border="0" vspace="0" style="width: 800px; height: 1094px;"/>

Machinery	Usage	Feature
Potato washing peeling machine	This machine is used to wash and peel potatoes completely with hard brushes or emery brush	We use high quality brusher, brusher length is customized. The emery brush is used for Hard-to-peel old potatoes.
Potato cutter (to cut chips or Strips)	This machine is used to cut potatoes into slices or strips to make potato chips or french fries.	Food grade 304 stainless steel made, chips thickness is adjustable, french fries size is customized.
Blanching machine	This machine is used to deactivate the activity of the oxidase, take off the starch.	After blanching, it can keep potatoes' color and inner soft taste. The heating source: Gas / Electricity / Diesel.
Dehydrator	This machine is used to remove extra water after blanching.	The de-water time is adjustable.
Fryer	This machine is used to fry chips and fries in short time.	Frying time amd frying temperature (Room temperature to 300℃ ) can be adjustaed. Heating source: Gas/Electrcity
Deoiler	This machine is used to remove extra oil after frying.	The de-water time is adjustable.
Seasoning machine for potato chips	This machine is used to season potato chips.	You can add condiment even liquid when seasoning
Packing machine	This machine is used to pack and seal bags.	We have different model package machines depending on your need.

Potato peeling machine

1. Washing and peeling capacity can be customized.

2. The whole machine is made of 304 stainless steel with 9 rollers.

3. The length of brush can be customized.

4. The discharge speed can be adjusted

Potato strips machine

1. This machine is always used in french fries production line.

2. The strips' size such as 7*7mm, 8*8mm, 10*10mm and custom made can be changed by adjusting the blade.

3. The whole machine is made of 304 stainless steel, High speed stainless steel blades.

Potato slicer machine

1. It is always used in potato chips/potato slice production line or banana chips/plantain chips production line.

2. The thickness of slice/chip can be changed by adjusting blades.

3. This machine has three high quality blades.

4. The quantity of inlet hole and size can be customized according to your need.

Blanching machine

1. You can use gas, electricity, diesel or steam as power for this machine depending on your needs.

2. It can effectively protect original vivid color of the potato strips/potato chip, improve the softness of the cells, and facilitate the evaporation of water.

3. You can add additives during blanching process.

Dehydrator

1. This machine can effectively remove extra water after blanching process.

2. You can set time to remove water.

3. De-water time better set 10 seconds.

Basket fryer

1. You can choose basket type fryer machine, batch type freyr machine or continuous type fryer machine according to your needs.

2. Basket type fryer machine is usually used in semi automatic production line,

3. Frying temperature (room temperature to 300℃) and Frying time can be adjusted.

De-oil machine

1. This machine can effectively remove extra oil after frying process.

2. You can set time to remove oil.

3. De-oil time better set 15 seconds.

Seasoning machine

1. This type season machine can season potato chips, bananan chips/plantain chips.

2. You can add additives any you want even liquid such as oil, water etc.

3. Seasoning time can be controlled.

Packing machine

1. This type package machine can fill Nitrogen but need to fill french fries/potato chips/banana chips/planatin chips by manual, it is more biased towards manual.

2. we also have full automatic package machine for you choice, it can fill Nitrogen automatically, automatic weighing, automatic sealing and automatic packing.
