Fruit and vegetable cleaning and peeling machine fruit and vegetable cleaning brush Professionally made for vegetable processing
Scope of application:
Suitable for washing leafy vegetables, root vegetables and preserved fruits, such as: Chinese cabbage, lettuce,bo Bo, turnip, etc.This device is especially suitable for cutting and not easily sticking to the net belt.
One - An overview:
Vortex vibration cleaning machine is a new type of fruit and vegetable cleaning and processing machinery developed by ourcompany.It and other cleaning machines have two big differences, one is clean water, two is vibration transport materials.The machine mechanism is simple, low failure rate, compact structure, easy to operate, good cleaning effect, and good waterfiltration, high productivity.
Two-Working principle:
Vortexing is formed by using the cleaning water to make the material clean in the vortexing water.When the material is cleaned, it makes spiral movement together with the clean water in the cleaning tank. After the material is cleaned, it is pushed forward by the vibration conveying mechanism under the action of hydrodynamics and sent out of the cleaning machine.
Three- Main structures:
The machine is composed of a frame, a cleaning tank, a water pump, a water storage tank, a vibration conveyer, an electrical control system and a control switch.
Four- Main technical parameters:
1. Power: 4.8KW;
2. Power supply: 50HZ, 380V;
3. External dimension: 4200*1150*1600mm;
4. Production capacity: 1000-2000kg/h;

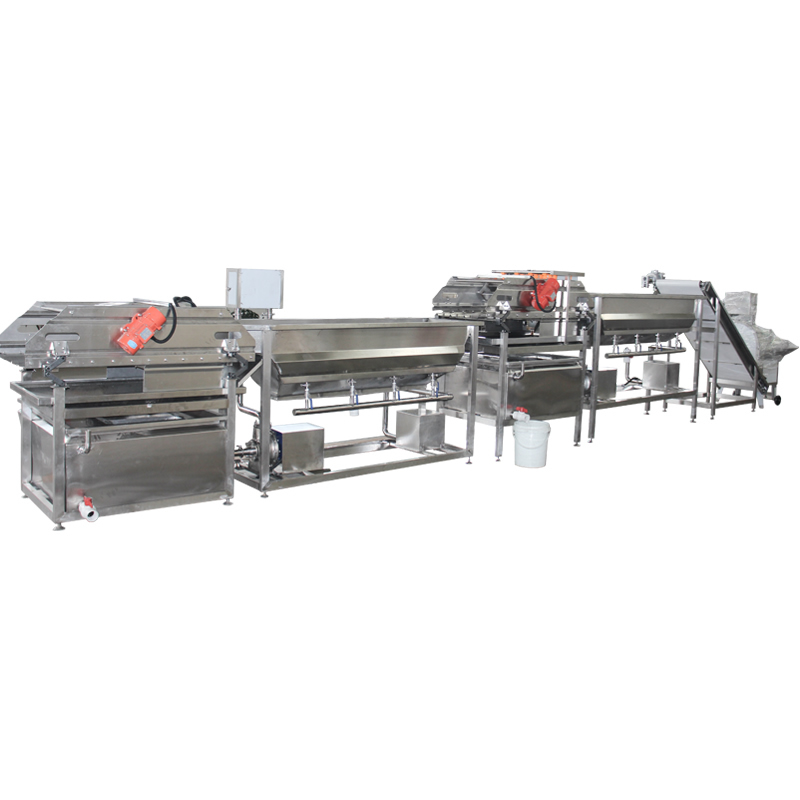

The design of the production line is generally as follows: selection table (and hob type vegetable cutter combined into one) + elevator + eddy current cleaning machine (first cleaning) + eddy current cleaning machine (ozone cleaning is added for the second time) + air dryer + packing.
 |  |
| High pressure spray | Vibration dewatering machine |
 |  |
| Vibrating dewatering screen | Water circulation storage tank |
 |  |
| Clean the asphalt sieve | Bubble circulating pump |
Our company focuses on the production and processing of food machinery, provides customized services according to the needs of different programs, and develops long-term services and cooperation with Europe, Asia, South America and other regions and countries.
Zhengzhou Zhiyin Industrial Co., LTD is a professional manufacturer integrating meat processing equipment and vegetable cleaning equipment production and sales, has formed a set of raw material supply, product development, process design, finished product inspection, production and operation, storage and transportation, technical services as one of the perfect operating system.
Mainly engaged in sandwich pot series, cooking pot series, mixing pot series, meat processing equipment, vegetable cleaning equipment. The company has advanced processing center, laser cutting equipment, shear plate bending equipment and a full set of testing equipment. The main products are: sandwich pot, cold powder machine, rolling kneading machine, chopping and mixing machine, mixing stuffing machine, meat mincer, enema machine, vegetable cleaning machine, desalination machine, pasteurization machine, vibrating screen, flexible packaging blow-dry machine, etc.
1. Why do you choose Huayuan Food Machinery?
We have 9 years of production and development experience, high quality products, superior program design, good reputation has become the elements of the company.
2. Is the design scheme free of charge?
We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.
3. Production cycle?
We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.
4. After-sales service
We will guide the installation online and provide video and graphic information. If necessary, we will arrange technicians to install the machine on site. The after-sales service of the motors configured for our products is one year.
