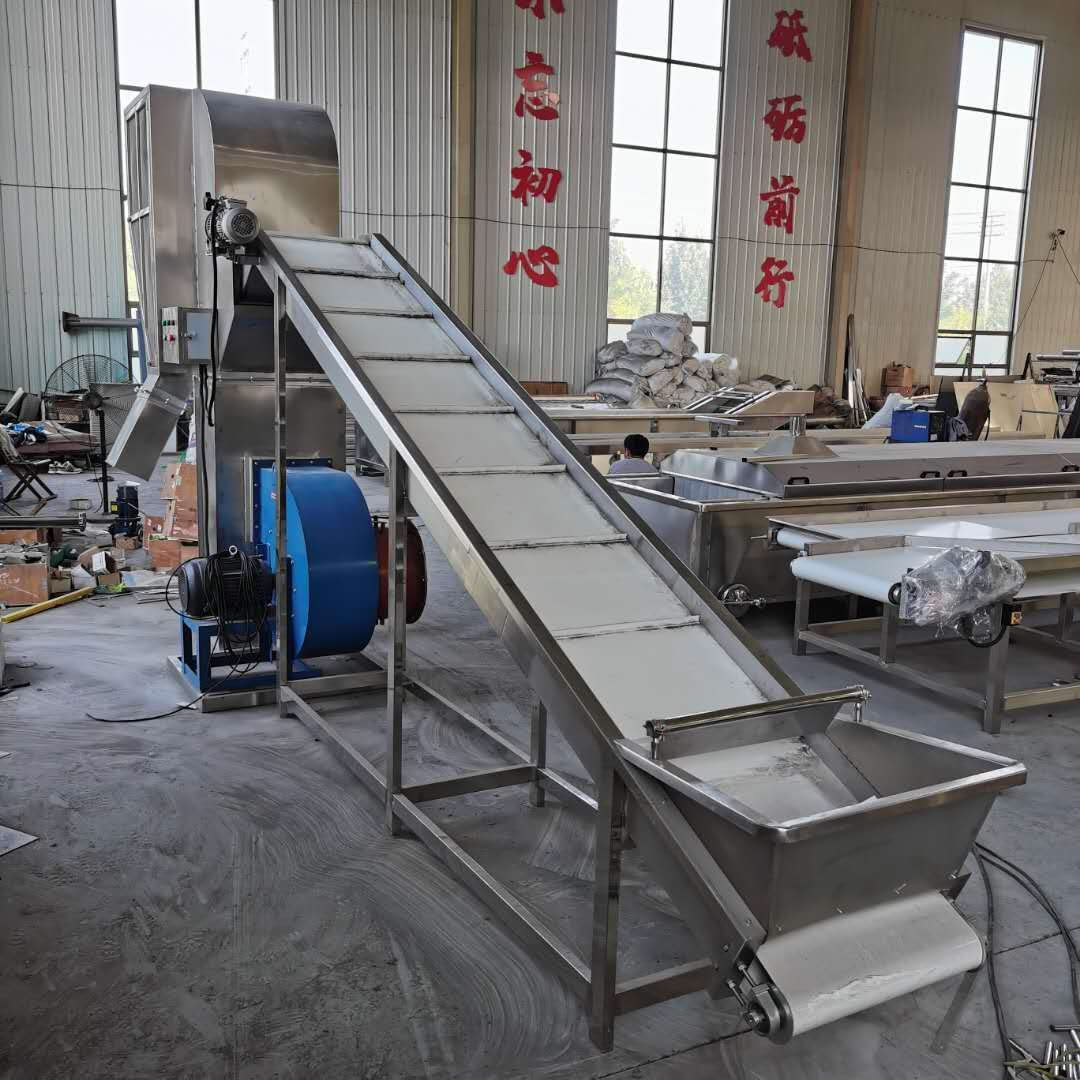

Air separating machine with hoisting machine Vegetable jujube and garlic clove automatic air sorting machine
For separating the leaves and small stones of Rambi.
Air volume: 5712-10562m³/min
Wind pressure 2554-1673pa
Rotation speed: 2930rpm
Power: 8kw
Advantage:
1). The machine is made of high-quality SUS304 stainless steel which is safe and hygienic.
2). Equipped with a unique blowing system and increased transport channels, leaves can be discharged out of the room to ensure that the workshop is not polluted.
3). The inside of this machine is equipped with a perforaled strainer, thus the small stones can fall into the collecting box.
4) Capacity: 700-1300kg/h according to different material.
5). It saves the manual selection process which can save a lot of time
6). Removing rate: ≥98%
Main accessory Production Distribution list Parameters
Production distribution list parameters | The material | Specifications |
Lower Airduct | SUS304 stainless steel | The thickness of 2mm |
Upper separation box | SUS304 stainless steel | The thickness of 1.5 mm |
Rectangular square pipe (frame) | SUS304 stainless steel | 50*50*2mm |
Speed regulating motor | Cast aluminium alloy | NMRV050-TA-80B14 |
Support | SUS304 stainless steel | 60*30*2 rectangle square tube |
Roller | PVC | ￠42 |
Supporting feet | SUS304 stainless steel | ￠60 |

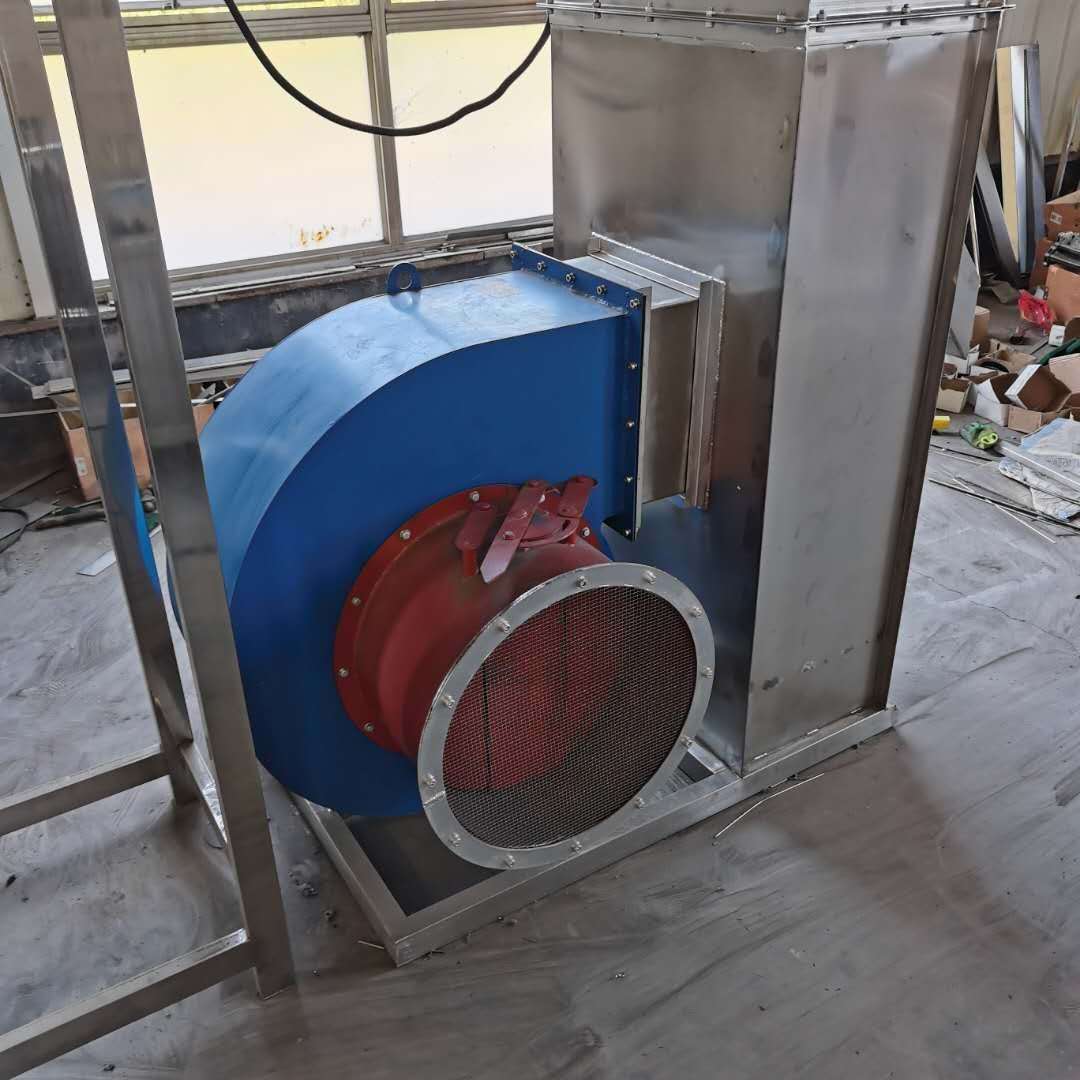

Centrifugal fan | Structural Steel | 4-72-NO4.5A |
Zhengzhou Zhiyin Industrial Co., LTD is a professional manufacturer integrating meat processing equipment and vegetable cleaning equipment production and sales, has formed a set of raw material supply, product development, process design, finished product inspection, production and operation, storage and transportation, technical services as one of the perfect operating system.
Mainly engaged in sandwich pot series, cooking pot series, mixing pot series, meat processing equipment, vegetable cleaning equipment. The company has advanced processing center, laser cutting equipment, shear plate bending equipment and a full set of testing equipment. The main products are: sandwich pot, cold powder machine, rolling kneading machine, chopping and mixing machine, mixing stuffing machine, meat mincer, enema machine, vegetable cleaning machine, desalination machine, pasteurization machine, vibrating screen, flexible packaging blow-dry machine, etc.
Email: Sale@Frenchfriesline.com
Wechat/WhatsApp:+86 15249674563
Our company focuses on the production and processing of food machinery, provides customized services according to the needs of different programs, and develops long-term services and cooperation with Europe, Asia, South America and other regions and countries.
1. Why do you choose Zhiyin Food Machinery?
We have 9 years of production and development experience, high quality products, superior program design, good reputation has become the elements of the company.
2. Is the design scheme free of charge?
We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.
3. Production cycle?
We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.
4. After-sales service
We will guide the installation online and provide video and graphic information. If necessary, we will arrange technicians to install the machine on site. The after-sales service of the motors configured for our products is one year.
